Accessories

ECN1313 PG module

Get a Quote Data Download

Feature Specification Application Download

Model

Connection object

Terminal

Description

EXC-PG05

ECN1313 Encoder



Earth

Null

Not use

A+A-

A signal input

B+B-

B signal input

CLK+CLK-

ECN1313 Differential clock signal

DATA+DATA-

ECN1313 Differential data signal

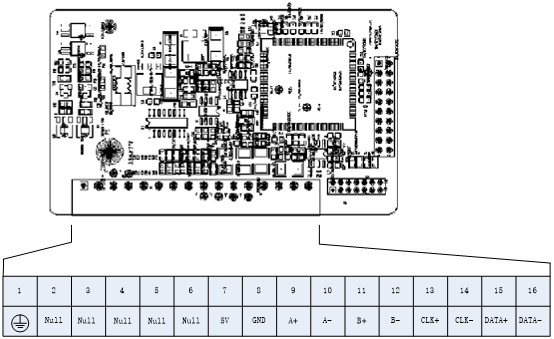

Terminal function description:

Model

Connection object

Terminal

Description

EXC-PG05

ECN1313 Encoder


Earth

Null

Not use

A+A-

A signal input

B+B-

B signal input

CLK+CLK-

ECN1313 Differential clock signal

DATA+DATA-

ECN1313 Differential data signal



Parameter settings

parameter

Description

F00.08 = 3

VC control mode

F08.24 = 3

ECN1313













Group F08 Parameters of Motor 1

F08.00

Motor 1 type selection

0Three phase asynchronous motors

0

×

1AC permanent magnet synchronous motor

2Single phase asynchronous motorsRemove capacity

3Single phase asynchronous motorsNo need to remove capacity

F08.01

Power rating of motor 1

0.1~1000.0kW

Model

defined

×

F08.02

 Rated voltage of motor 1

60660V

Model

defined

×

F08.03

Rated current of motor 1

0.11500.0A

Model

defined

×

F08.04

Rated frequency of

motor 1

20.00Fmax

Model

defined

×

F08.05

Rated speed of motor 1

130000

Model

defined

×

F08.08

Stator resistance R1 of

async motor 1

0.00165.535Ω

Model

defined

×

F08.09

Rotor resistance R2 of

async motor 1

0.00165.535Ω

Model

defined

×

F08.10

Leakage inductance L1

of async motor 1

0.00165.535mH

Model

defined

×

F08.11

Mutual inductance L2 of

asynchronous motor 1

0.16553.5mH

Model

defined

×

F08.12

No-load current of

async motor 1

0.11500.0A

Model

defined

×

F08.13

Field weakening coeff 1

of async motor 1

0.0100.0

87%

×

F08.14

Field weakening coeff 2

of async motor 1

0.0100.0

75%

×

F08.15

Field weakening coeff 3

of async motor 1

0.0100.0

70%

×

F08.16

Stator resistance of

synchronous motor

0.001~65.535Ω

Model

defined

×

F08.17

Synchronous motor direct shaft inductance

0.01~655.35mH

Model

defined

×

F08.18

Synchronous motor cross-axis inductance

0.01~655.35mH

Model

defined

×

F08.19

Synchronous motor back EMF

<span style=";font-family:宋体;font-size:12px
