Accessories

LCD Keyboard

Get a Quote Data Download

Feature Specification Application Download

  • Can display three parameters at same time

  • With parameter definitions, more easy to use

  • Supports parameter backup and upload/download

1Operations and Display Interface Introduction

 LCD panel is a Human-Machine-Interface (HMI) for debugging inverter parameters. The following is keypad function structure and display interface

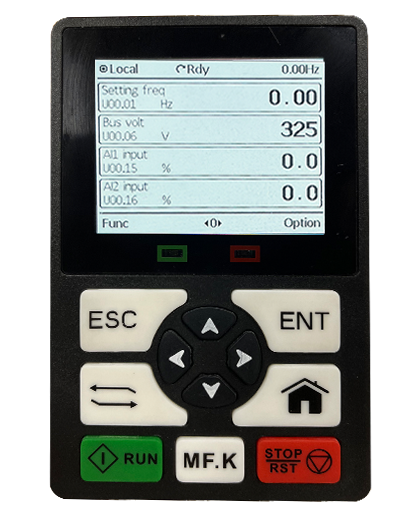

Figure 1-1 Keypad structure




Figure 1-2 Keypad interface

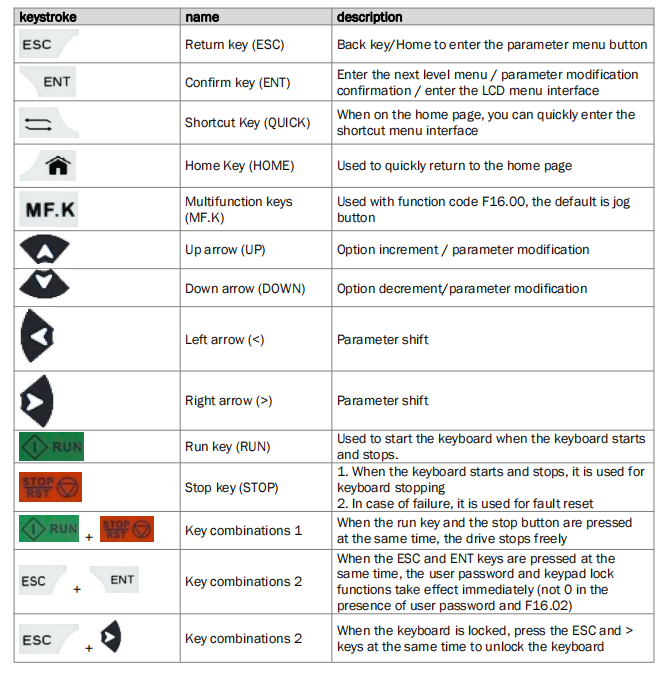

1.1 Operation panel button function introduction

Symbol

Name

Function


Escape

Exit


Enter

Enter the menu interfaces level by level,and confirm the parameter setting


Increment

Increase data or function code


Decrement

Decrease data or function code


Shift

Select the displayed parameters in turn in the stop or running state, and select the digit to be modified when modifying parameters


Multifunction

Perform function switchover (such as jog run and quick switchover of command source or direction) according to the setting of F16.00.


Run

Start the inverter in the keypad control mode


Stop/Reset

Stop the inverter when it is in the running state and perform the reset operation when it is in the fault state. The functions of this key are restricted in F16.01.


Key combinations 1

The inverter will free stop when the run and stop key are pressed simultaneously.


Key combinations 2

The frequency inverter can be quickly set digital given frequency when the MF.K and >> keys are pressed at the same time,


Key combinations 3

ESC and >> keys are pressed simultaneously to unlock the keypad


Key combinations 4

ESC and ENT keys are pressed simultaneously for keypad lock (under the condition that F16.02 is not equal to 0)
