Solar Pump Inverter Solutions

1. What is Solar Pump Inverter？

Asolar pump inverter is a device that converts the direct current (DC) electricity generated by solar panels into alternating current (AC) to drive water pumps. It is designed to adjust the motor speed according to the intensity of sunlight, ensuring stable water output even under changing weather conditions. This technology is widely used in agriculture, particularly in areas where the power grid is unavailable or unreliable.

As one of the leading solar pump inverter manufacturers, FRECON offers its own brand of solar pump inverters, developed through years of experience in motor control and energy conversion. These inverters are compatible with various types of pumps and support both single-phase and three-phase motors, which are ideal for building a reliable solar irrigation pump system, providing an efficient and sustainable water supply for farming and livestock.

Process requirements and features

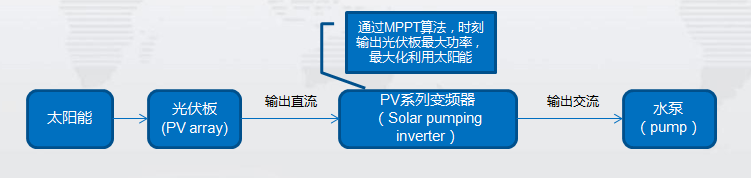

2. Process Requirements of the Solar Water Pumping System

l The solar water pumping system begins with solar energy, which is captured by photovoltaic (PV) panels. These PV panels convert sunlight into direct current (DC) electricity.

l The DC electricity is then sent to a solar pumping inverter. This inverter utilizes MPPT (Maximum Power Point Tracking) technology to continuously track and extract the maximum power from the PV panels, ensuring optimal use of solar energy.

l The solar pumping inverter converts the DC electricity into alternating current (AC), which is suitable for driving a water pump.

l Finally, the water pump operates using the AC power, delivering water for applications such as irrigation or livestock. This process forms a complete solar water pumping system, enabling an efficient and sustainable water supply using only solar energy.

3. Features of the Solar Water Pumping System

The solar irrigation system utilizes green energy from the sun to power a water pump directly, without the need for batteries. It supports fully automatic operation, making it efficient and easy to use for lifting water in various applications.

How did Frecon’s solar system for irrigation help harness renewable energy?

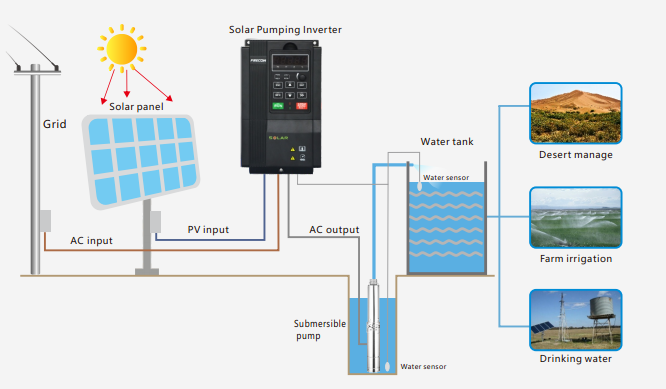

Schematic diagram

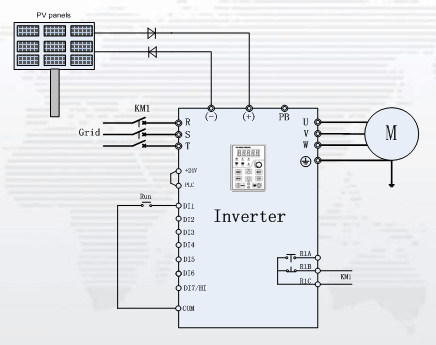

Main parameter settings

Product Series Overview

FRECON offers three top-tier inverter series for solar pumping systems: the PV500 Series Solar Pump Inverter, PV580 Series Solar Pumping Inverter, and PV150A Series Solar Pumping Drive. Each model features a high IP protection rating, comprehensive built-in safeguards, and is engineered for exceptional water output, making the system more efficient and having prolonged operational lifespans.

Why Choose FRECON’s Solar Pumping System?

FRECON’s Solar Pumping System offers an advanced, reliable, and eco-friendly solution for water pumping needs, powered by solar energy. With a focus on efficiency, automation, and sustainability, FRECON's systems provide exceptional performance, low maintenance, and a long operational lifespan, making FRECON’s inverter a leading choice for solar pumping applications.

lHarnesses green energy

FRECO’s solar pumping system is designed to harness the abundant power of the sun, converting solar energy into efficient water pumping for various applications. By eliminating the need for fossil fuels or grid power, our solar pump inverter helps reduce operational costs, carbon emissions, and dependency on unreliable power grids, making it a sustainable option for solar water pumping systems globally.

lFully automatic, battery-free operation

FRECON’s solar water pump for irrigation operates without the need for a battery, ensuring a simple, efficient, and low-maintenance system. The solar pump irrigation system directly powers the water pump through solar energy generated, adapting automatically to varying sunlight conditions, offering a streamlined solution that is both cost-effective and easy to manage.

lDirect Pump Drive for High Efficiency

The innovative design of FRECON’s solar powered water pump system features a direct pump drive that minimizes energy loss, optimizing solar power conversion, ensuring maximum energy is utilized for pumping, even during fluctuating sunlight hours.

lProven Track Record & Global Reach

With a proven history of successful installations in over 50 countries, FRECON’s solar powered water pump system has earned the trust of farmers, industrial users, and governments worldwide. From solar powered pumping system used for agricultural irrigation in arid regions to water supply systems in off-grid areas, FRECON has a proven track record of delivering reliable and durable solar water pumping systems backed by a global service network.
