Rotate transformer PG card

Get a Quote Data Download

Feature Specification Application Download

Model

Connection object

Port name

Description

EXC-PG03

Rotate transformer

COS+COS-

Cosine signal

SIN+SIN-

Sine signal

REF+REF-

Reference voltage signal

Null

Null




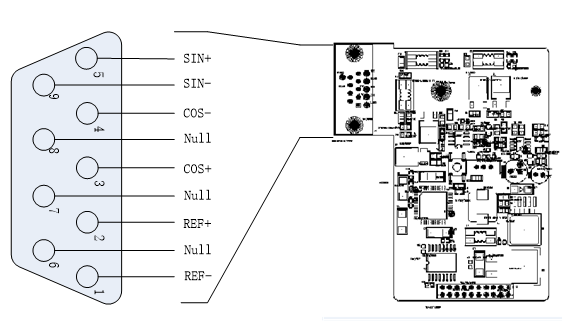

DP9 port description

Pins

1

2

3

4

5

6

7

8

9

Description

REF-

REF+

COS+

COS-

SIN+

null

null

null

SIN-





Pins function description

Model

Connection object

Port name

Description

EXC-PG03

Rotate transformer

COS+COS-

Cosine signal

SIN+SIN-

Sine signal

REF+REF-

Reference voltage signal

Null

Null





Parameter setting

parameter

Description

F00.08 = 3

VC control mode

F08.24 = 2

Select as rotary transformer





Send Inquiry Now

Address:2nd Floor, Building 3, HuaFengZhenBao LED Industrial Park, Shiyan street, Baoan District, Shenzhen, China

Follow us
Send Inquiry Now

Group F08 Parameters of Motor 1

F08.00

Motor 1 type selection

0Three phase asynchronous motors

0

×

1AC permanent magnet synchronous motor

2Single phase asynchronous motorsRemove capacity

3Single phase asynchronous motorsNo need to remove capacity

F08.01

Power rating of motor 1

0.1~1000.0kW

Model

defined

×

F08.02

 Rated voltage of motor 1

60660V

Model

defined

×

F08.03

Rated current of motor 1

0.11500.0A

Model

defined

×

F08.04

Rated frequency of

motor 1

20.00Fmax

Model

defined

×

F08.05

Rated speed of motor 1

130000

Model

defined

×

F08.08

Stator resistance R1 of

async motor 1

0.00165.535Ω

Model

defined

×

F08.09

Rotor resistance R2 of

async motor 1

0.00165.535Ω

Model

defined

×

F08.10

Leakage inductance L1

of async motor 1

0.00165.535mH

Model

defined

×

F08.11

Mutual inductance L2 of

asynchronous motor 1

0.16553.5mH

Model

defined

×

F08.12

No-load current of

async motor 1

0.11500.0A

Model

defined

×

F08.13

Field weakening coeff 1

of async motor 1

0.0100.0

87%

×

F08.14

Field weakening coeff 2

of async motor 1

0.0100.0

75%

×

F08.15

Field weakening coeff 3

of async motor 1

0.0100.0

70%

×

F08.16

Stator resistance of

synchronous motor

0.001~65.535Ω

Model

defined

×

F08.17

Synchronous motor direct shaft inductance

0.01~655.35mH

Model

defined
