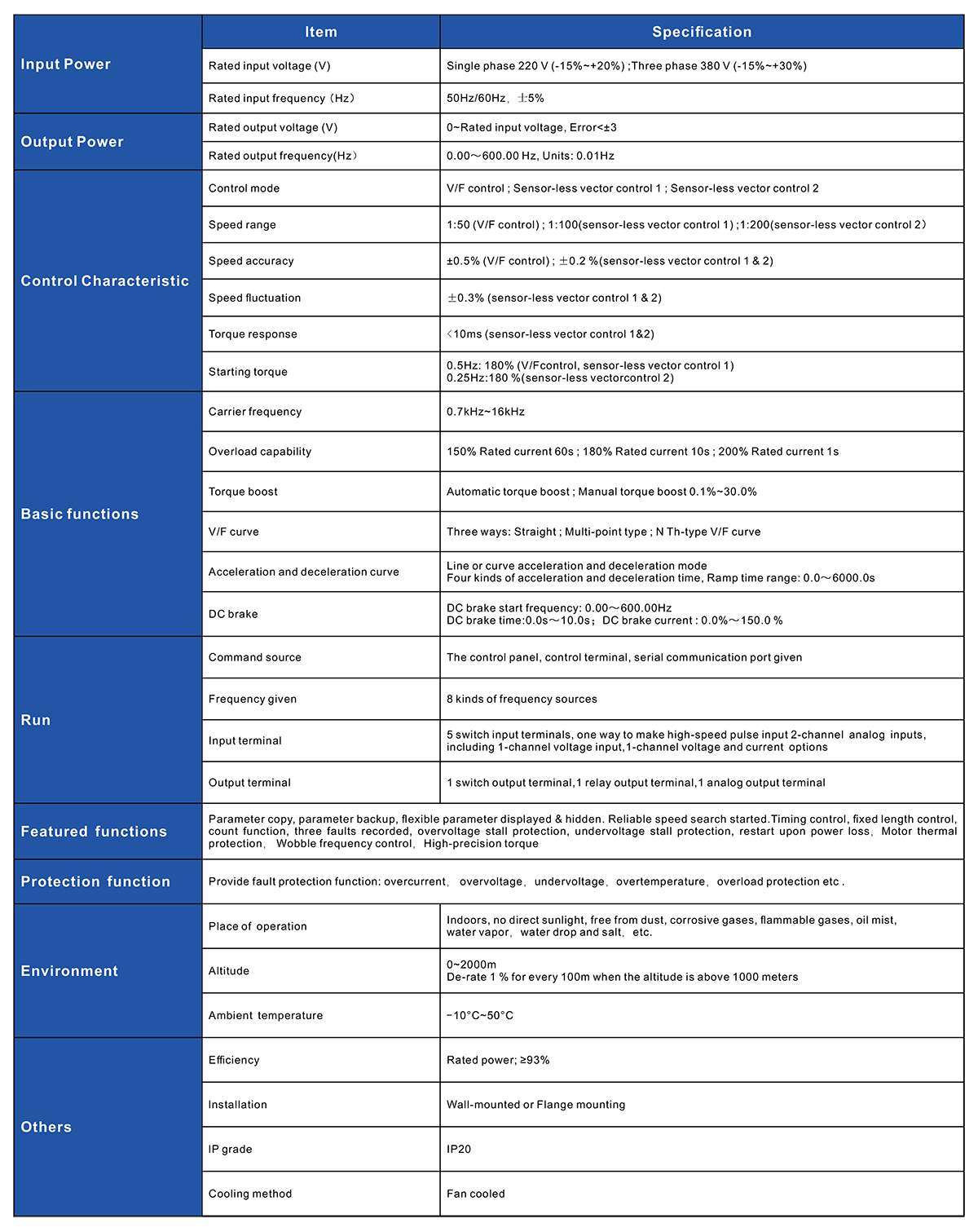

FR150 series is a new generation main models inverter of FRECON.It have advanced control methods,
achieving high torque,high precision,high reliability,and wide-speed drive.Built-in simple PLC ,PID
adjustment,programmbale input and output terminals,Rs485 port,analog input and output and many other
rich control functions. It provides highly integrated solutions for equipment matching,engineering
transformation,automation control and special industrial applications.The power range is 0.2-160KW.
• Suitable for several typoes of motor
1 Standard application wiring
（Three phase 380V asynchronous mot: Three phase 380V input/Three phase 0-380V output;
Three phase 220V asynchronous mot: Single phase 220V input/three phase 0-220V output）
2 Special application wiring(※Please contact factory if using below application wiring)
Single phase 220V input.
Single phase 220V asynchronous mot.
Single phase 0~220V input.
• Optimized Structural Design,Leading Technology PI
Compare with previous generation products of the same power,the size of FR150 series is smaller.
greatly saves the installation space,It's convenient to layout the electronic control device.
maximum installation area reduced by 40%,volume reduced by 50%.
• Common DC bus
When using several inverters,can parallel DC buses of drives to implement energy share,reduce
braking resistance power or cancel braking resistor.
• Built-in braking unit in all ratings
Only connect braking resistor to save cost
• Support input phase lacking protection,short circuit protection between motor to ground and motor phases
Comprehensive protection to ensure reliable operation.
• Built-in RS 485 communication(Modbus)
485+ 485- terminals,supports standard Modbus RTU communication,implement system integration.
• Convenient debugging
1 Powerful background software.
2 Short-cut menu:
Common armeters setting rapidly to save customer's time to read manual
3 Unique upload and download module which is convenient for parameter commissioning.
Restore factory parameters,bacdkup user parameters
4 Design special applicaiton macro according to industry demand.
