Dedicated Purpose Inverter

FR500D Series Elevator Inverter

Get a Quote Data Download

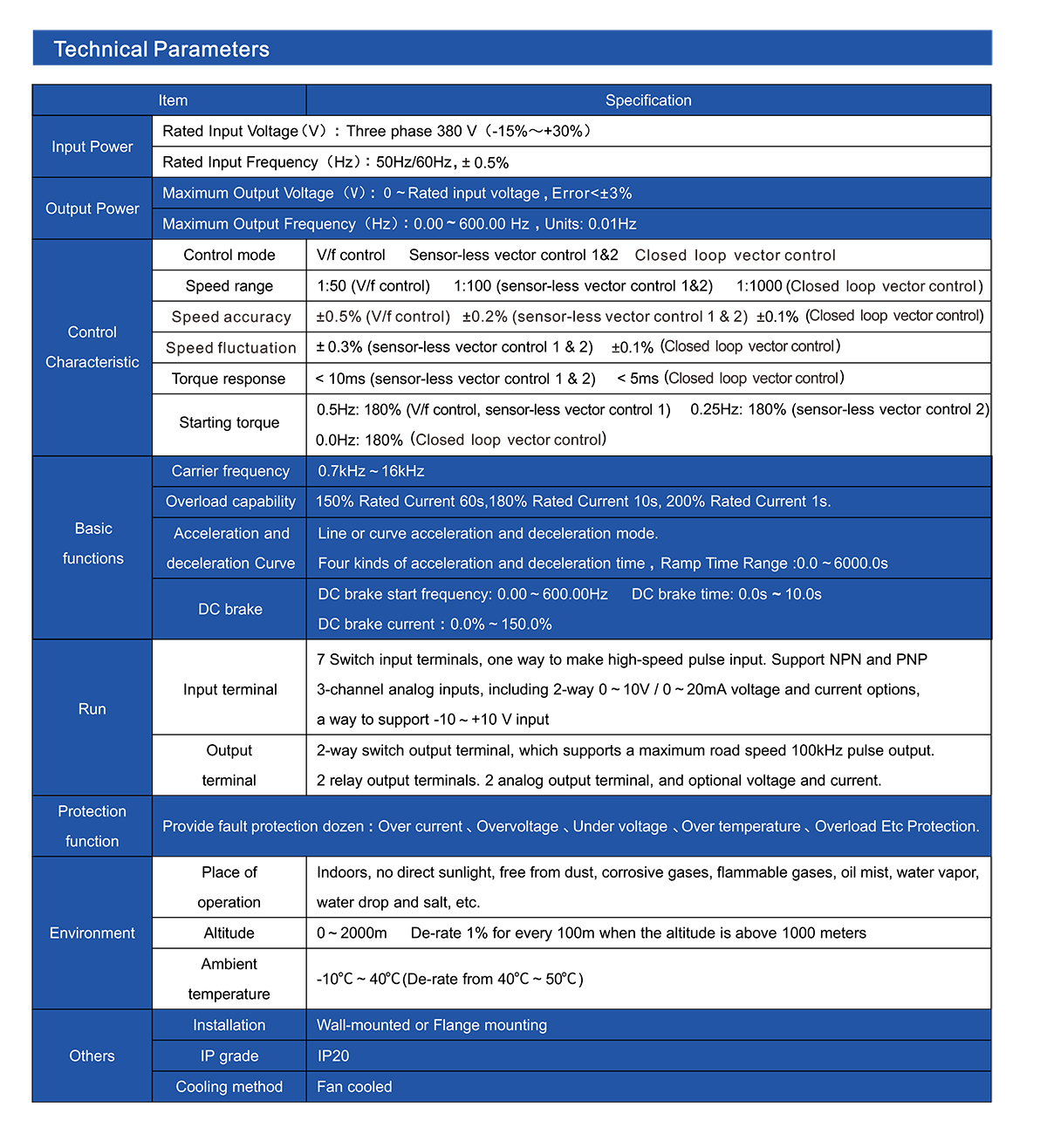

Feature Specification Application Download

· Multi-stage S curve special for elevator

  Flexibly start curve processing, multi-stage S curve setting, 4-level acce/dece time setting,

  which can make sure the comfortable of elevator.


· Power Failure Self-help

  DC 48V battery input or single phase 220V voltage input optional


· Built-in brake unit, reduce the electrical system fittings cost.

  Built-in brake unit is available for inverters with 75kw or lower power.


· Full range of independent duct design, professional lightning protection design.

  Featured with the function of motor parameters auto-tuning, static tuning or full-tuning.

  Function of forced power failure self-help

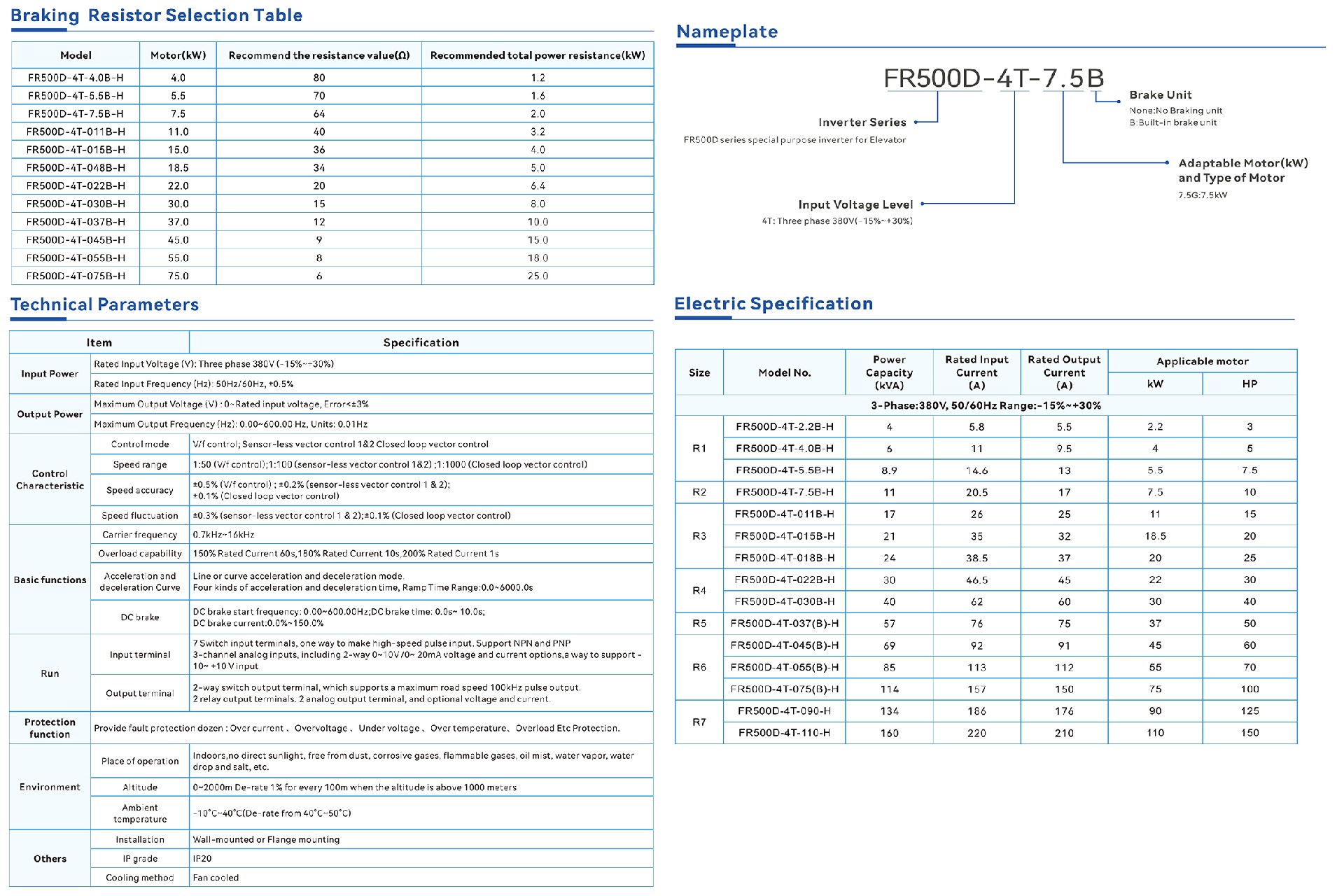

ModelBattery CapacityInput CurrentOutput CurrentAdapted Motor
kVAAAkW           HP
Three-phase power:380V,50/60Hz   Range:-15%~+30%
FR500D-4T-0.7B1.53.42.50.751
FR500D-4T-1.5B354.21.52
FR500D-4T-2.2B45.85.52.23
FR500D-4T-4.0B6119.53.7、45
FR500D-4T-5.5B8.914.6135.57.5
FR500D-4T-7.5B1120.5177.510
FR500D-4T-011B1726251115
FR500D-4T-015B2135321520
FR500D-4T-018B2438.53718.525
FR500D-4T-022B3046.5452230
FR500D-4T-030B4062603040
FR500D-4T-037B5776753750
FR500D-4T-045B6992914560
FR500D-4T-055B851131125570
FR500D-4T-075B11415715075100
