Why Does the High Voltage Inverter Get Hot? How Does an Inverter Survive High Temperatures?

Have you ever touched your high-voltage inverter and found it hot? You are not alone! Users often worry when their inverter heats up during use. They wonder why this happens and whether it is dangerous. We have all the answers in-store for you!

In this article, we will explore why a high-voltage inverter gets hot and how to make sure your inverter survives the scorching summer. By understanding the causes and applying a few key strategies, you can keep your inverter running efficiently and safely.

Why Do High-Voltage Inverters Get Hot?

High voltage inverters perform complex energy conversions that generate heat and power your home. When combined with other stressors, this can lead to overheating of the solar inverter.

A high voltage inverter gets hot due to several contributing factors, such as:

Inherent Energy Conversion Loss

When converting direct current (DC) from solar panels into alternating current (AC) for household use, inverters lose some energy in the form of heat. This energy loss is an unavoidable byproduct of the conversion process. The higher the load or usage, the more heat is produced, especially in large solar installations.

The Crucial Role of IGBT Modules

IGBTs (Insulated Gate Bipolar Transistors) are essential components in a high-voltage inverter. These IGBT modules handle rapid switching and efficiently manage high voltages, enabling smooth power conversion. However, they also produce a considerable amount of heat during operation. Without proper thermal management, IGBT modules become a major source of solar inverter overheating, especially under heavy or continuous loads.

Environmental Factors

External temperature plays a significant role in inverter heat buildup. Inverters installed in direct sunlight or enclosed spaces without ventilation are more likely to overheat. Dust and debris can also block air vents, further restricting airflow and cooling.

Overloading and System Mismatch

When too many appliances or incompatible batteries are connected, the inverter is pushed beyond its design capacity. This overloading forces the system to work harder, producing more heat. Mismatched solar panel configurations can also lead to power imbalance and excess heat.

Internal Component Failure/Aging

Over time, components such as cooling fans, capacitors, and thermal paste can degrade. As these parts age, their ability to manage heat drops significantly. This leads to inefficient cooling and higher internal temperatures during normal operation.

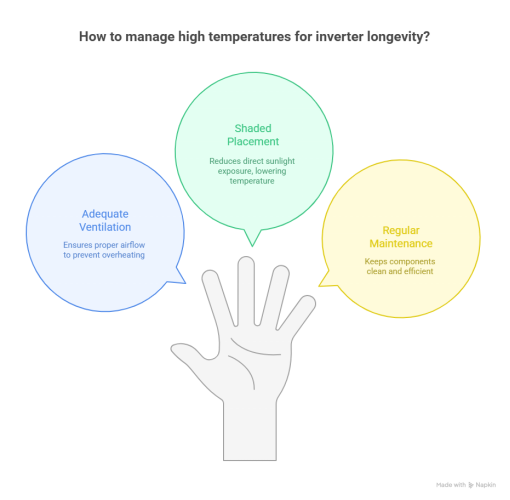

How To Survive High Temperatures: Strategies for Inverter Cooling and Longevity

For a high-voltage inverter, heat not only reduces efficiency but also shortens its lifespan. Here are some strategies that will help prevent solar inverter overheating and allow your inverter to perform well even in extreme conditions.

Optimal Installation Location

Install your high-voltage inverter in a shaded, cool, and dry area. Avoid placing it in direct sunlight or tight corners. The right location helps reduce heat buildup from external sources.

Ensuring Proper Ventilation and Airflow

Good airflow is critical. Make sure the inverter has enough space around it for air to circulate. Avoid blocking vents or placing the unit near walls or objects that trap heat. Overheating can be prevented with simple airflow.

Regular Maintenance

Dust, dirt, and debris clog cooling fans and vents, impeding airflow. Clean your inverter regularly to maintain proper airflow. Also, inspect connections and look for signs of wear and tear. A well-maintained solar charger controller and inverter setup operate more efficiently and run cooler.

Correct System Sizing and Load Management

Avoid overloading your inverter. Choose the right size based on your energy needs. If you connect too many devices, the system will heat up quickly. Mismatched loads stress the inverter and reduce its cooling efficiency.

Use the Advanced Thermal Management Features

Modern inverters come with built-in protections like temperature sensors, auto shutdown, and smart cooling systems. These features help regulate heat and prevent damage during hot conditions.

Consider Inverter Type/Design

Pay attention to convection-cooled vs. fan-cooled. Convection-cooled inverters rely on passive airflow and have no moving parts, making them quieter and low-maintenance. Fan-cooled models use internal fans to actively dissipate heat, providing better cooling for high-performance needs.

Robust design is another crucial consideration. Choose inverters from brands that use high-quality components and employ advanced thermal designs. A well-built high-voltage inverter will perform better and last longer, even in extreme heat.

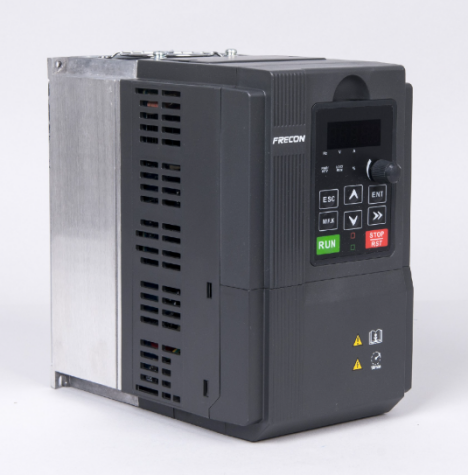

FRECON FR500A & 510A for High-Temperature Resilience

For those seeking a reliable solution to high temperatures, the FRECON FR500A and FR510A models stand out for their durability and high-performance design. These high-voltage inverters feature a high-density structure and excellent low-frequency output characteristics, making them ideal for demanding industrial environments.

With a wide power range from 380V 0.5kW to 1000kW, they offer strong peak power capacity and precise three-phase vector control. Built with robust components and advanced thermal management, the FR500A & FR510A are engineered to withstand heat stress and ensure long-term stability. This makes them a smart choice for those facing solar inverter overheating and extreme operating conditions.
