Modern wastewater treatment facilities require reliable automation systems to maintain stable operations, reduce energy consumption, and improve process efficiency. As treatment plants become more complex, selecting suitable drive technologies has become essential for controlling pumps, motors, and other critical equipment. At FRECON, we provide professional solutions in industrial automation, energy efficiency, and green new energy. Our advanced AC drives help industries achieve precise motor control, operational stability, and sustainable performance in demanding environments.
Why Proper AC Drives Configuration Matters in Wastewater Treatment
Wastewater treatment plants operate continuously and involve multiple motor-driven processes, including pumping, aeration, filtration, and sludge handling. These applications often require equipment to adjust speed according to changing flow rates and treatment conditions. Traditional fixed-speed systems may waste energy because motors operate at full capacity even when lower output is sufficient.
Industrial AC drives provide an effective solution by enabling variable-speed motor control. By adjusting motor frequency and speed based on real-time requirements, these systems help reduce unnecessary power consumption while maintaining process accuracy. For wastewater operators, properly configured drives can support stable operation, lower maintenance demands, and extend equipment service life.
The configuration of AC drives should consider factors such as motor characteristics, load conditions, environmental requirements, and control strategies. A well-designed drive system allows wastewater treatment facilities to balance efficiency, reliability, and long-term operating costs.
Selecting Industrial AC Drives for Pumping and Flow Control Applications
Pumping systems are among the largest energy consumers in wastewater treatment plants. Pumps frequently operate under variable conditions, making speed regulation an important factor in improving efficiency. Industrial AC drives allow operators to precisely control pump speed according to water levels, pressure requirements, and flow changes.
For example, during periods of lower wastewater inflow, pumps do not need to operate at maximum speed. With frequency control technology, the drive can reduce motor speed and energy usage while still maintaining the required performance. This capability helps facilities achieve better energy management without compromising treatment processes.
When selecting industrial AC drives for wastewater applications, engineers should evaluate power capacity, overload capability, protection functions, and compatibility with existing automation systems. For water-supply and pumping applications, engineers should also consider whether the drive can coordinate multiple pumps, maintain stable pressure, and protect pumps from conditions such as dry running.
Advanced FR500H Features for Multi-Pump Water Supply Automation

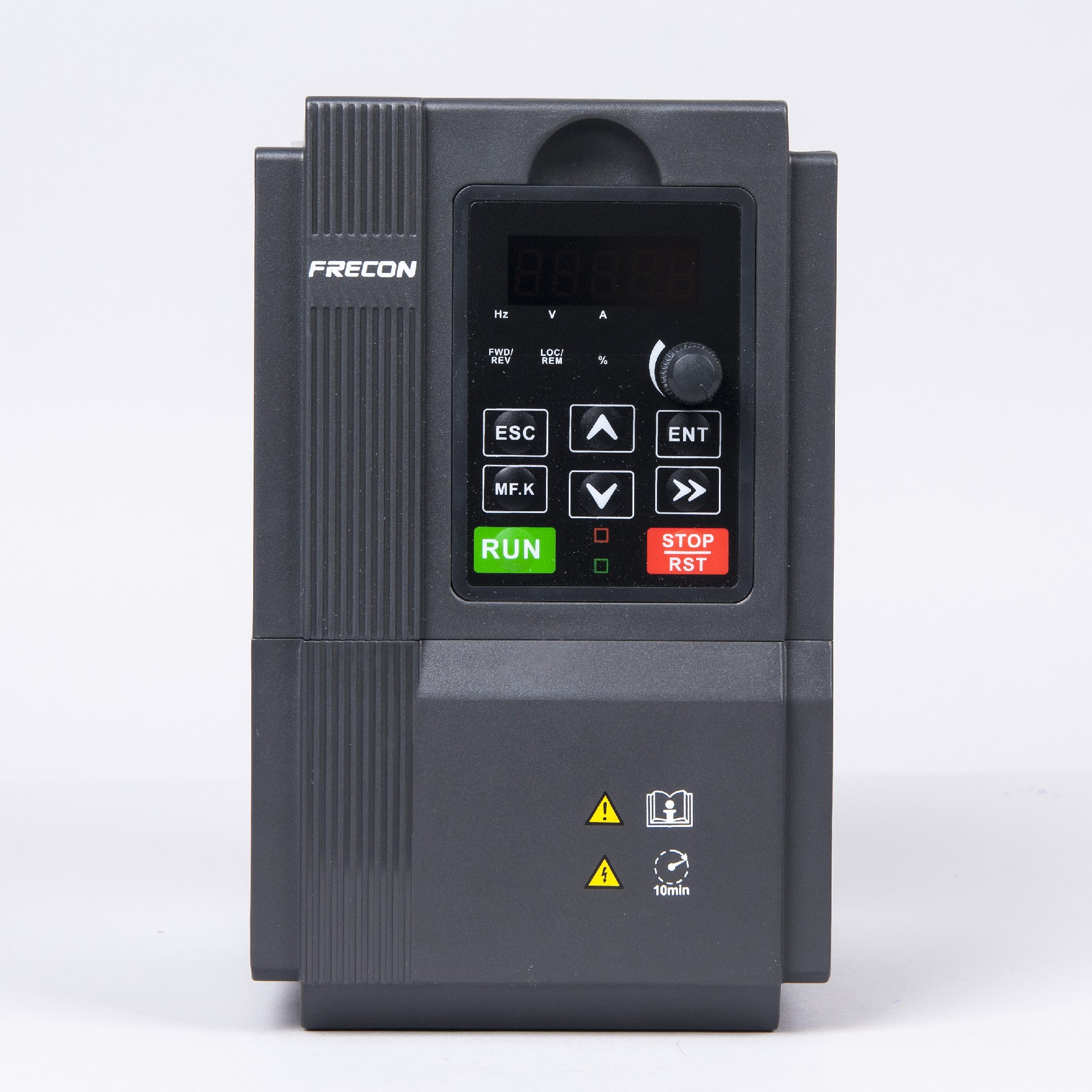

For wastewater facilities and water-related infrastructure that rely on multiple pumps, the FR500H Series Special Purpose Inverter for Multi-pump Constant Pressure Water Supply provides application-specific control functions. Its multi-pump control modes allow different system configurations, including a single variable-frequency pump with multiple power-frequency pumps, variable-frequency and power-frequency pump combinations, multi-frequency following mode, and multi-master mode.
These control modes provide greater flexibility when configuring pumping systems with different capacity and operational requirements. By coordinating multiple pumps instead of relying on a single pump continuously, the FR500H Series can support more adaptable water-flow and pressure management strategies for automated pumping applications.
The FR500H Series also supports multiple pump rotation modes, including fixed sequence, first-start-first-stop, and timing rotation. These functions help prevent one pump from operating continuously for an extended period, supporting more balanced utilization across the pumping system. For wastewater and water-treatment operators, this approach can contribute to more consistent equipment operation and easier pump management.
Pump Protection and Pressure Management with FR500H
Maintaining stable pressure is particularly important in multi-pump water systems. The FR500H Series supports pressure sleep and wake-up functions, allowing the system to respond to changing demand. It also supports a pipe-pressure filling function designed to prevent pressure overshoot during startup. Before pressure PID adjustment begins, the inverter can slowly run the pipe to complete pressure filling, providing a more controlled startup process.
Pump protection is another important consideration in wastewater and water-supply applications. The FR500H Series supports dry pumping detection, helping prevent pumps from running without sufficient water and reducing the risk of pump damage caused by dry operation. The inverter also provides a cleaning function that can help clear water-pump blockages, supporting more reliable operation in applications where pumping equipment may encounter contaminants or accumulated material.
Together, these functions make the FR500H Series particularly relevant to automated multi-pump systems where pressure stability, pump protection, and operational continuity are important design considerations.
Flexible Power Range for Different Pumping Requirements
Wastewater and water-treatment facilities can vary considerably in pump capacity and system scale. The FR500H Series is available for three-phase 380V applications with power ratings from 0.75kW to 450kW. This broad power range allows system designers to select a suitable inverter according to the requirements of different pump and motor configurations.
For B2B engineering projects, this flexibility can simplify drive selection across different pumping applications. Whether a system requires a relatively small pump or higher-capacity equipment, the FR500H Series provides a dedicated inverter platform for multi-pump constant-pressure water-supply applications.
Reducing System Costs Through Integrated Pump Control
Cost efficiency is a major consideration for wastewater treatment projects. Beyond initial equipment investment, operators must consider installation expenses, maintenance requirements, and long-term energy consumption. For multi-pump systems, application-specific control functions can also help simplify system management by integrating pump sequencing, rotation, pressure control, and protection functions into the inverter solution.
The FR500H Series' multiple pump control modes and rotation strategies can reduce the need to manage each pump independently during normal operation. Functions such as pressure sleep and wake-up, pipe-pressure filling, dry pumping detection, and pump cleaning are designed around common requirements in automated water-pumping systems, helping engineers build more application-focused control configurations.
Driving the Future of Efficient Wastewater Management
Modern wastewater treatment requires more than basic motor control. It demands intelligent, reliable, and energy-efficient systems that can adapt to changing operational conditions. For pumping-intensive applications, the FR500H Series combines multi-pump control, pressure management, pump rotation, cleaning, and dry-running protection functions to address key requirements of automated water systems.
At FRECON, we continue to develop advanced industrial automation solutions that help customers meet evolving efficiency and sustainability goals. With the FR500H Series Special Purpose Inverter, we provide a dedicated solution for multi-pump constant-pressure water-supply applications, helping engineering teams configure flexible and reliable pumping systems across a broad 0.75kW–450kW power range. By integrating reliable technologies and application expertise, we support the transition toward smarter and greener wastewater treatment systems.
